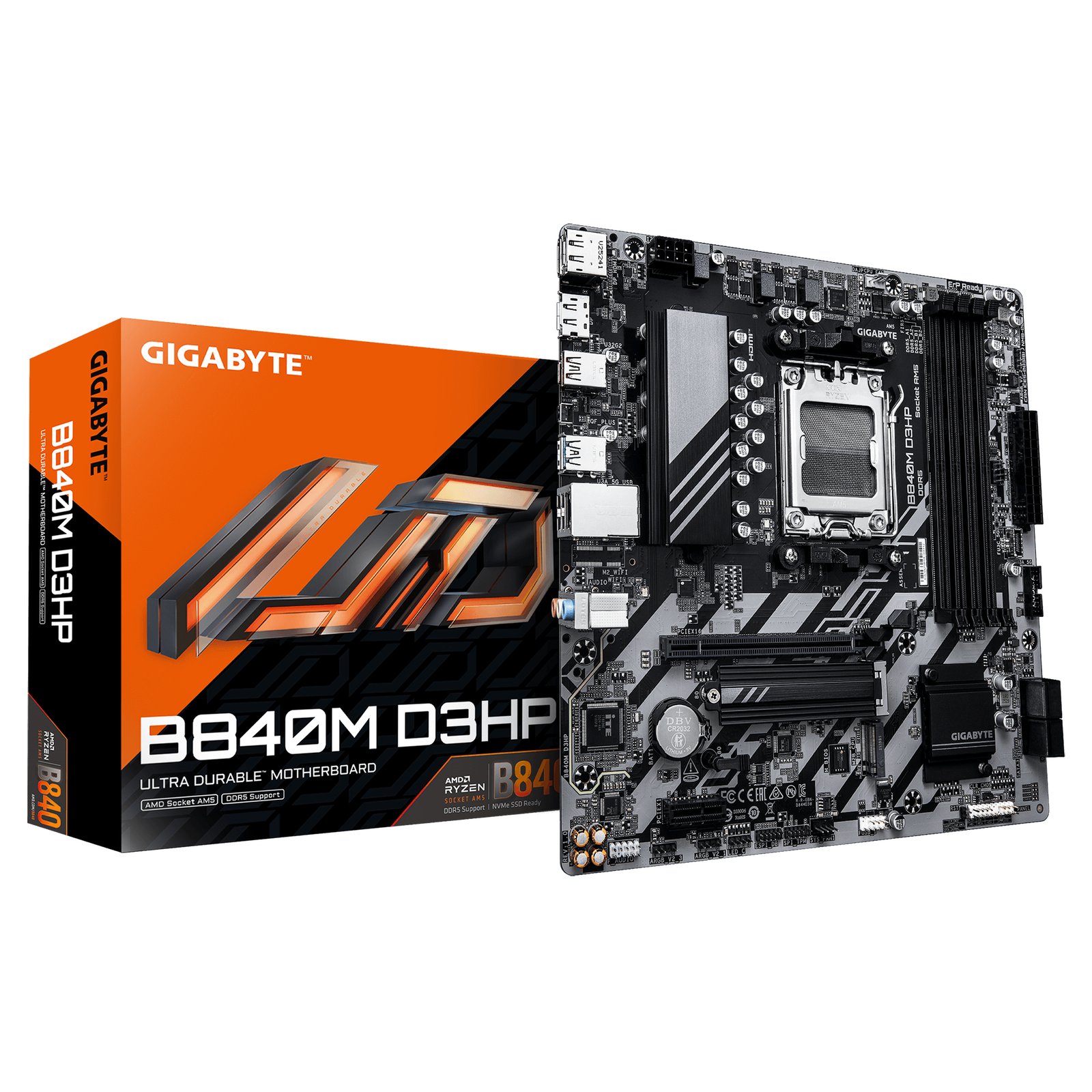

MB GIGABYTE AM5 B840M D3HP DDR5 BOX M-ATX

ProcesadorrnAMD Socket AM5, support for:rnAMD Ryzenu2122 9000 Series Processors/rnAMD Ryzenu2122 8000 Series Processors/rnAMD Ryzenu2122 7000 Series Processorsrn(Go to GIGABYTEs website for the latest CPU support list.)rnChipsetrnAMD B840rnMemoriarnSupport for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/srn4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryrnDual channel memory architecturernSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesrnSupport for AMD EXtended Profiles for Overclocking (AMD EXPOu2122) and Extreme Memory Profile (XMP) memory modulesrn(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List on GIGABYTEs website for more information.)rnGru00e1ficos IntegradosrnIntegrated Graphics Processor with AMD Radeonu2122 Graphics support:rn- 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hzrn* Support for DisplayPort 1.4 version.rnrnrn- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hzrn* Support for HDMI 2.1 version and HDCP 2.3.rn** Support for native HDMI 2.1 TMDS compatible ports.rnrnrn(Graphics specifications may vary depending on CPU support.)rnSupport for up to triple-display at the same timernAudiornRealteku00ae Audio CODECrnHigh Definition Audiorn2/4/5.1/7.1-channelrn* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.rnrnLANrnRealteku00ae GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)rnPuertos de Expansiu00f3nrn1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:rnu001b AMD Ryzenu2122 9000/7000 Series Processors support PCIe 4.0 x16 modernu001b AMD Ryzenu2122 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modernu001b AMD Ryzenu2122 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modern* The PCIEX16 slot can only support a graphics card or an NVMe SSD.rnrnrnChipset:rn- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1rnInterfaz de Almacenamientorn1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:rnu001b AMD Ryzenu2122 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsrnu001b AMD Ryzenu2122 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsrnu001b AMD Ryzenu2122 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDsrn1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:rnu001b AMD Ryzenu2122 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsrnu001b AMD Ryzenu2122 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsrnu001b AMD Ryzenu2122 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDsrn4 x SATA 6Gb/s connectorsrnRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesrn* RAID 5 is only available on AMD Ryzenu2122 9000 Series Processors.rnrnrnRAID 0, RAID 1, and RAID 10 support for SATA storage devicesrnUSBrnCPU:rn- 1 x USB Type-Cu00ae port on the back panel, with USB 3.2 Gen 1 supportrn- 1 x USB 3.2 Gen 1 port on the back panelrn- 1 x USB 2.0/1.1 port on the back panelrnChipset:rn- 1 x USB Type-Cu00ae port with USB 3.2 Gen 1 support, available through the internal USB headerrn- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelrn- 2 x USB 3.2 Gen 1 ports, available through the internal USB headerrn- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)rnConectores Internos de E/Srn1 x 24-pin ATX main power connectorrn1 x 8-pin ATX 12V power connectorrn1 x CPU fan headerrn2 x system fan headersrn3 x addressable RGB Gen2 LED strip headersrn1 x RGB LED strip headerrn2 x M.2 Socket 3 connectorsrn4 x SATA 6Gb/s connectorsrn1 x front panel headerrn1 x front panel audio headerrn1 x USB Type-Cu00ae header, with USB 3.2 Gen 1 supportrn1 x USB 3.2 Gen 1 headerrn1 x USB 2.0/1.1 headerrn1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)rn1 x reset jumperrn1 x Clear CMOS jumperrnConectores del Panel Traserorn1 x USB Type-Cu00ae port, with USB 3.2 Gen 1 supportrn1 x USB 3.2 Gen 2 Type-A port (red)rn1 x USB 3.2 Gen 1 portrn3 x USB 2.0/1.1 portsrn1 x HDMI port (Note)rn2 x DisplayPorts (Note)rn1 x Q-Flash Plus buttonrn1 x RJ-45 portrn3 x audio jacksrnrn(Note) Actual support may vary by CPU.rnControlador de E/SrniTEu00ae I/O Controller ChiprnMonitorizaciu00f3n H/WrnVoltage detectionrnTemperature detectionrnFan speed detectionrnWater cooling flow rate detectionrnFan fail warningrnFan speed controlrn* Whether the fan speed control function is supported will depend on the fan you install.rnrnBIOSrn1 x 256 Mbit flashrnUse of licensed AMI UEFI BIOSrnPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0rnCaracteru00edsticas u00danicasrnSupport for GIGABYTE Control Center (GCC)rn* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.rnrnrnSupport for Q-FlashrnSupport for Q-Flash PlusrnSupport for Smart BackuprnSoftware IncluidornNortonu00ae Internet Security (OEM version)rnSistema OperativornSupport for Windows 11 64-bitrnSupport for Windows 10 64-bitrnDiseu00f1ornMicro ATX Form Factor; 24.4cm x 24.4cm
